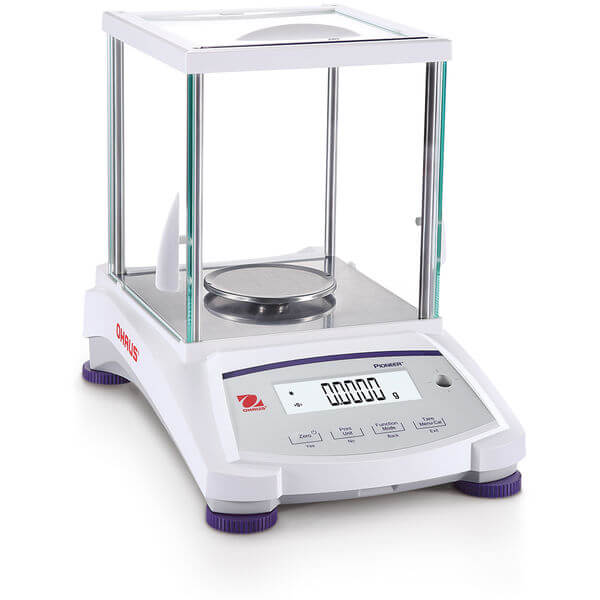

Ohaus PJX803E-800ct:
Applications
Basic Weighing, Parts Counting, Percent Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included)
Communication
RS232 interface and Mini-Din port (for connecting auxiliary display)
Construction
Metal base, plastic top housing, removable stainless steel pan, removable glass draftshield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator
Specification:
| Maximum Capacity | 160 g/800 ct |
| Readability | 0.0001 g; 0.001 ct |
| Pan Size | 3.5 in (90 mm) |
| Battery Life | Not Applicable |
| Communication | RS232 |
| Auxiliary Display Model | Available as an Accessory |
| Dimensions | 321 mm x 274 mm x 209 mm (LxHxW) |
| Display | LCD with backlight |
| Internal Calibration | Not Applicable |
| In-Use Cover | Included |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.0002 g |
| Net Weight | 10 lb (4.5 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.0001 g |
| Stabilization Time | 3 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom |
| Working Environment | operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing) |
