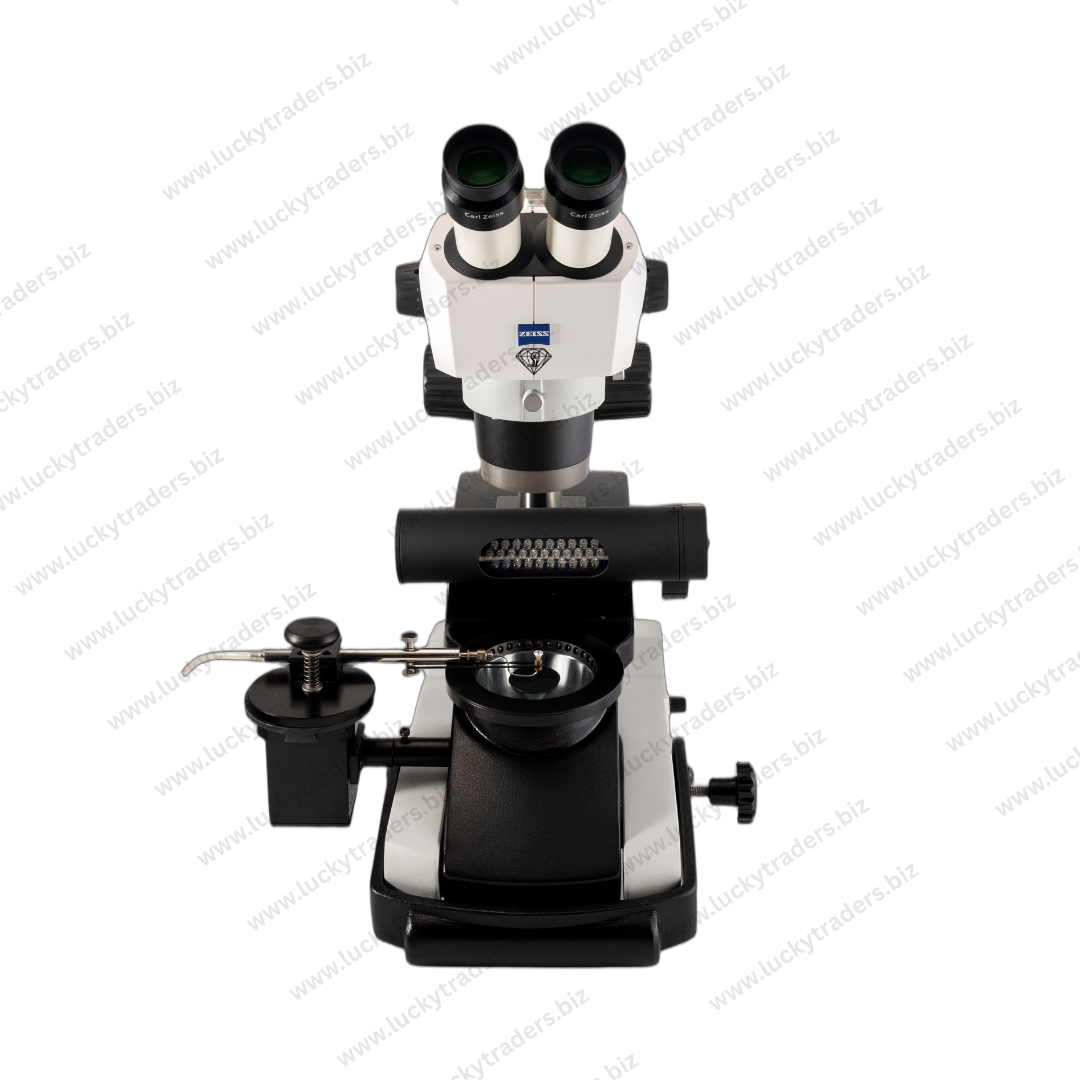

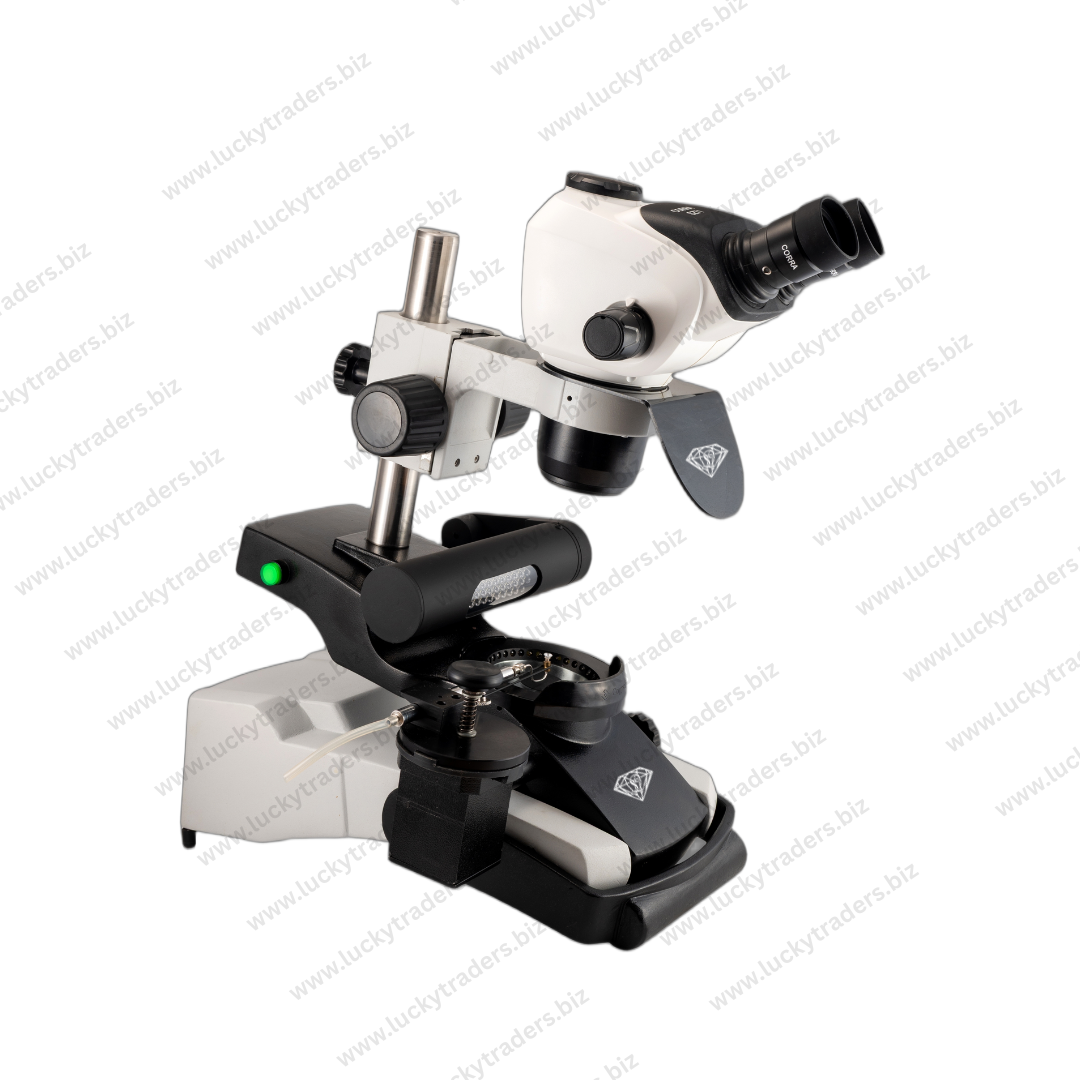

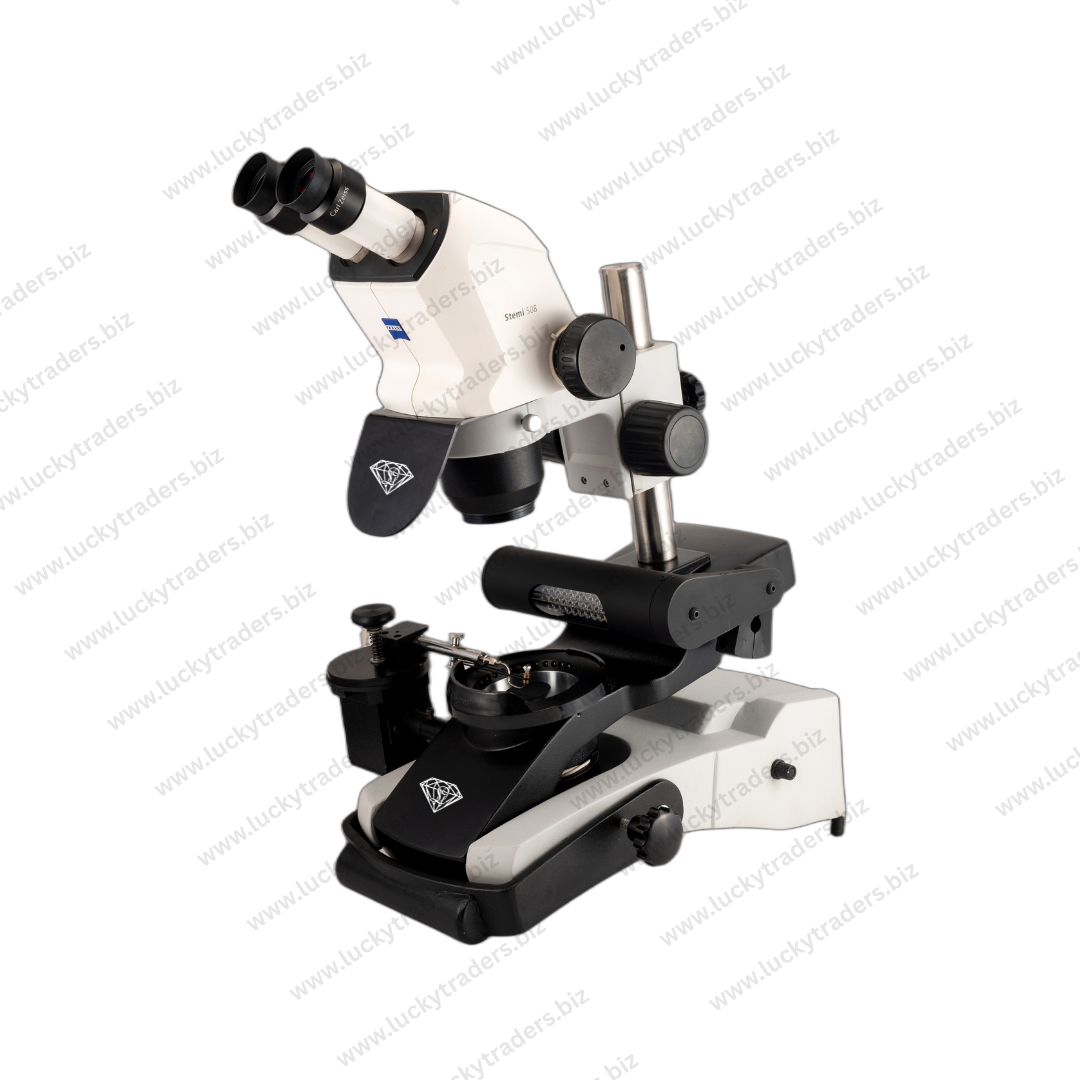

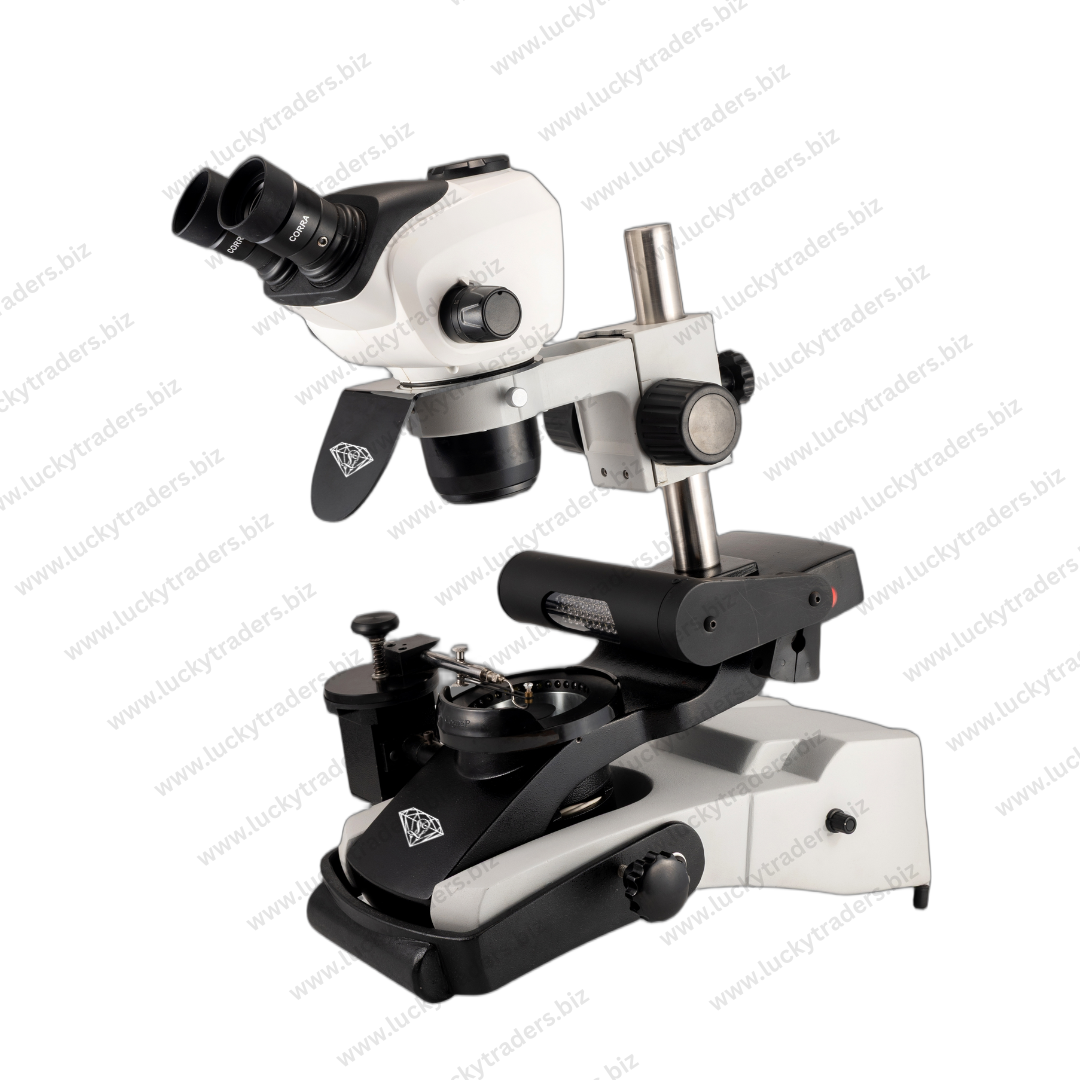

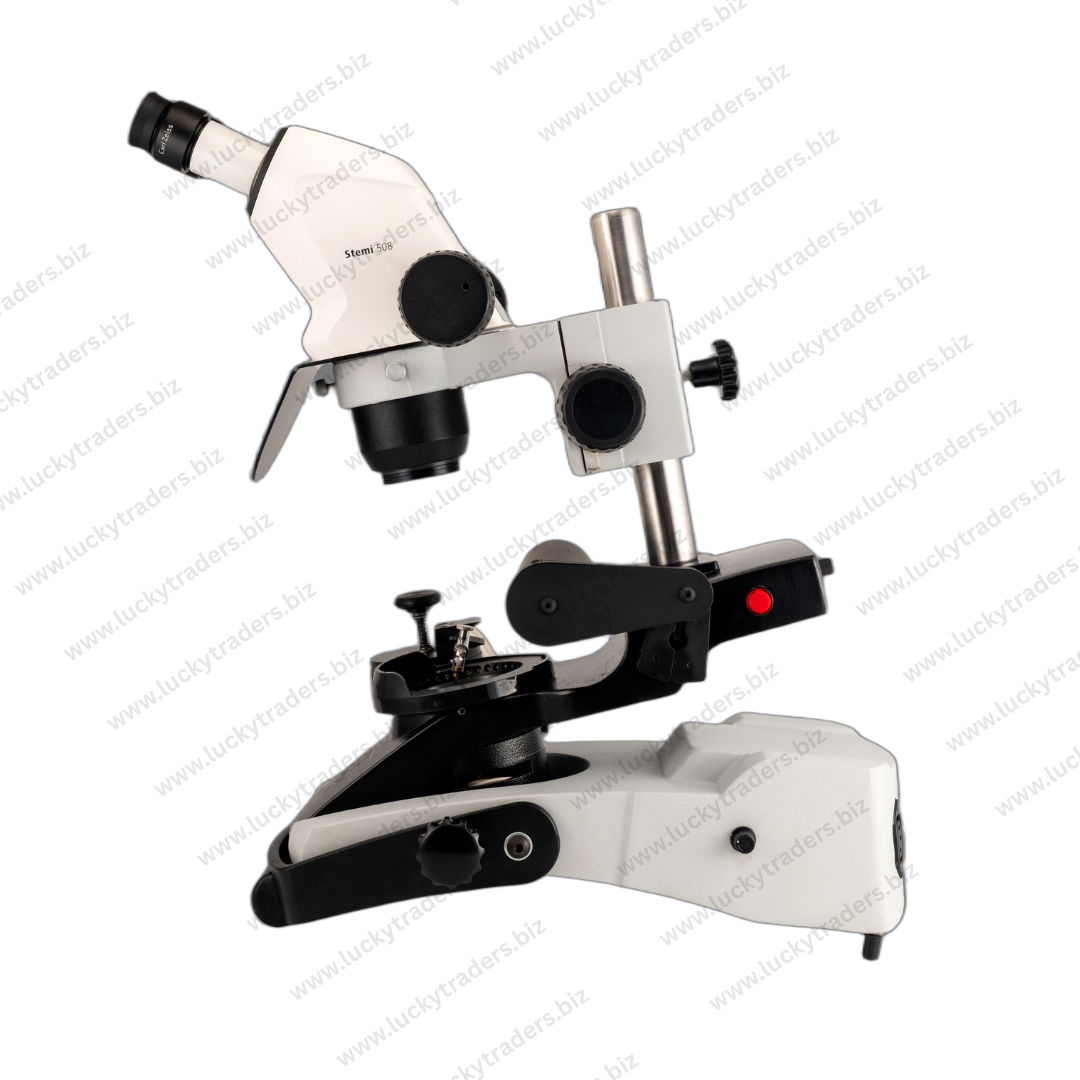

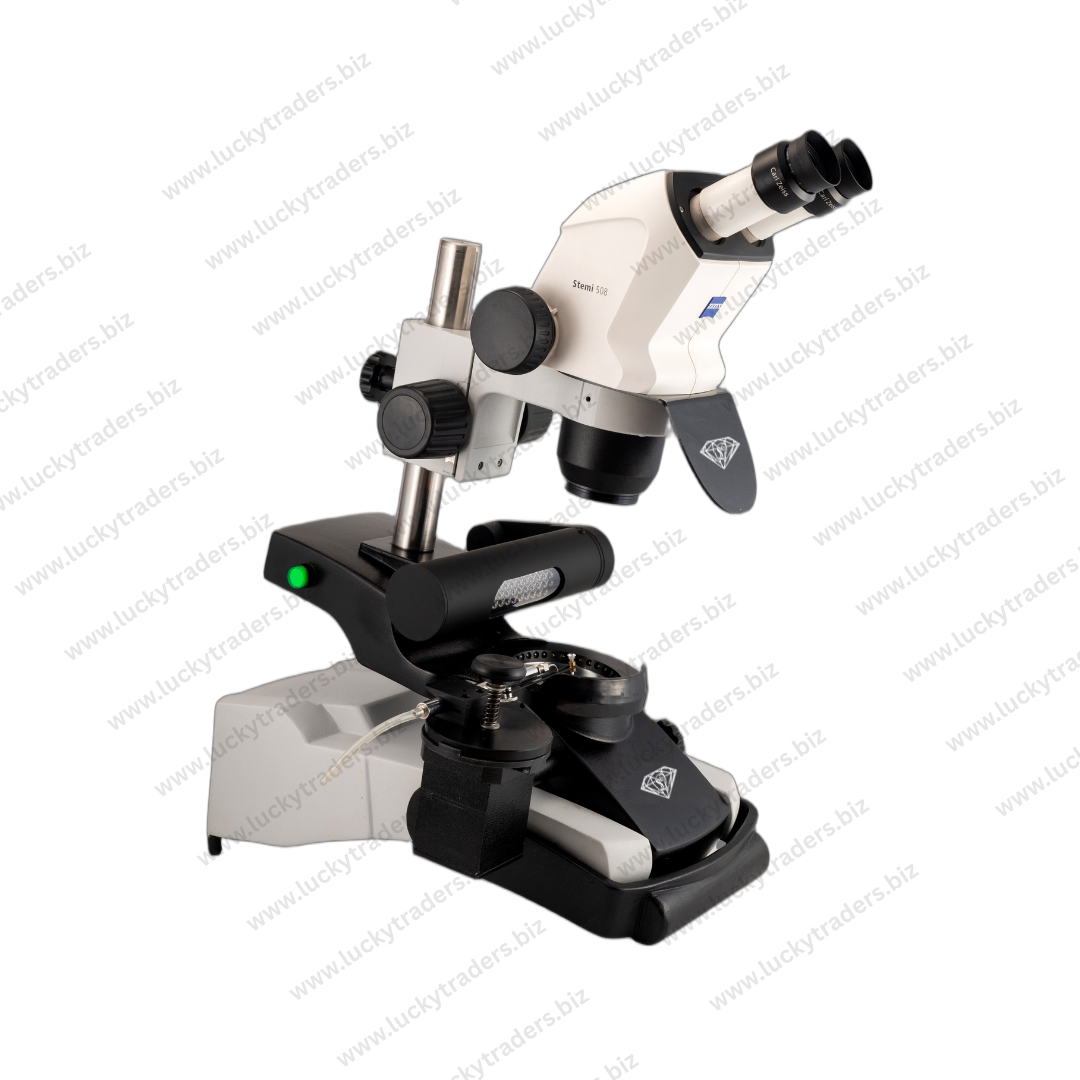

Trivion SZ81 Diamond Microscope

The TRIVION SZ81 Diamond Microscope is designed for professionals
who demand unmatched clarity and precision in diamond grading,
polishing, and analysis. Built with advanced optical technology and
superior illumination systems, it ensures accurate inspection of cut, color,
and inclusions, revealing every detail with brilliance.

Main Features:

• Lighting: Perfect for examining diamond cut,
color, and inclusions

• Optics: High-quality stereo zoom microscope
delivering crisp binocular images

• Magnification: 0.65x – 5.2x (with 10x eyepiece)

• Working Distance: 118 mm

• Viewing Angle: 35°

• Power Supply: 230V | Frequency: 50Hz

• Weight: 12 kg

• Surface Area: 19 × 40 cm (W × D)

Salient Features:

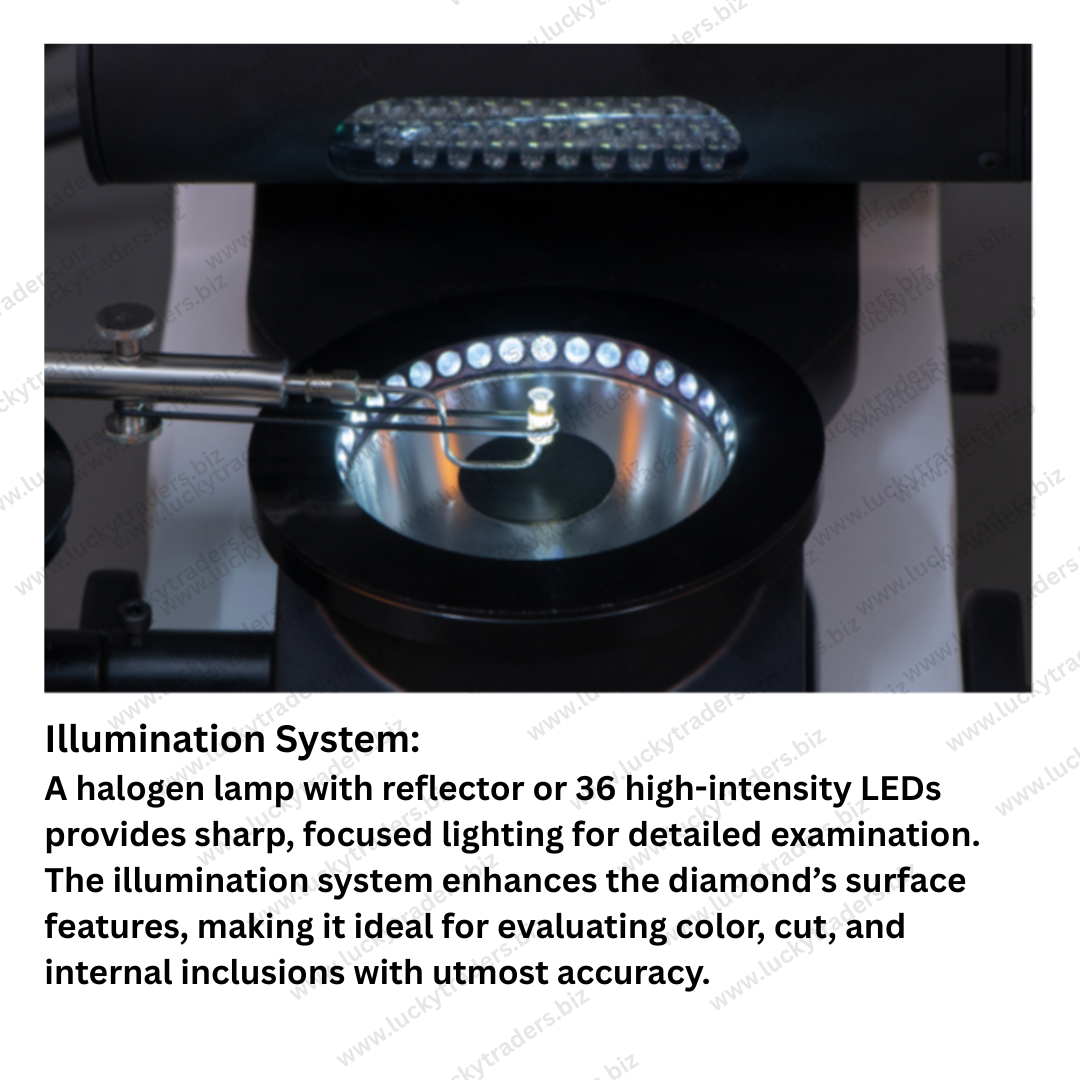

1. Illumination System:  A halogen lamp with reflector or 36 high-intensity
   LEDs provides sharp, focused lighting for detailed
   examination. The illumination system enhances the
   diamond’s surface features, making it ideal for
   evaluating color, cut, and internal inclusions with
   utmost accuracy.

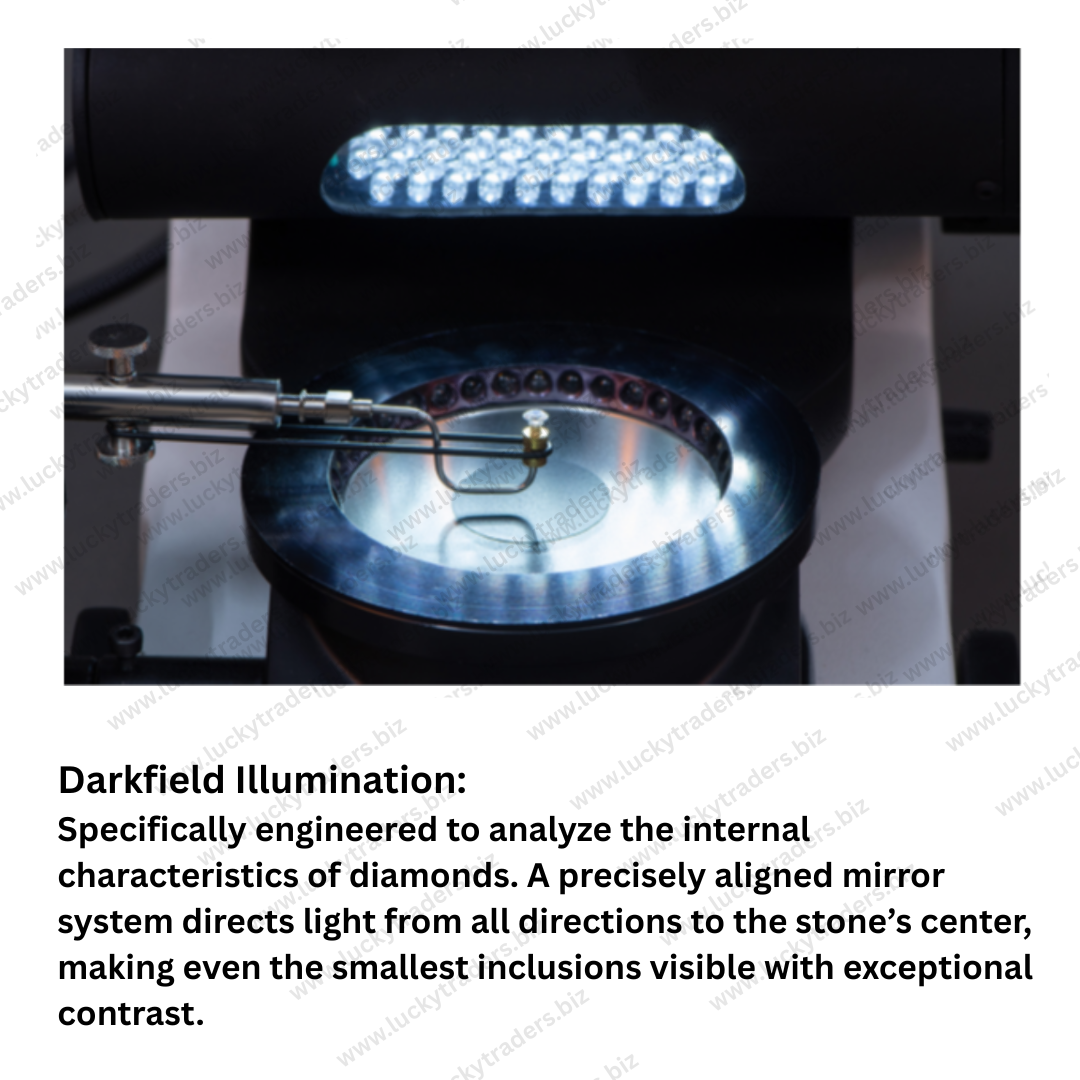

2. Darkfield Illumination: Specifically engineered to analyze the internal
   characteristics of diamonds. A precisely aligned
   mirror system directs light from all directions to the
   stone’s center, making even the smallest inclusions
   visible with exceptional contrast.

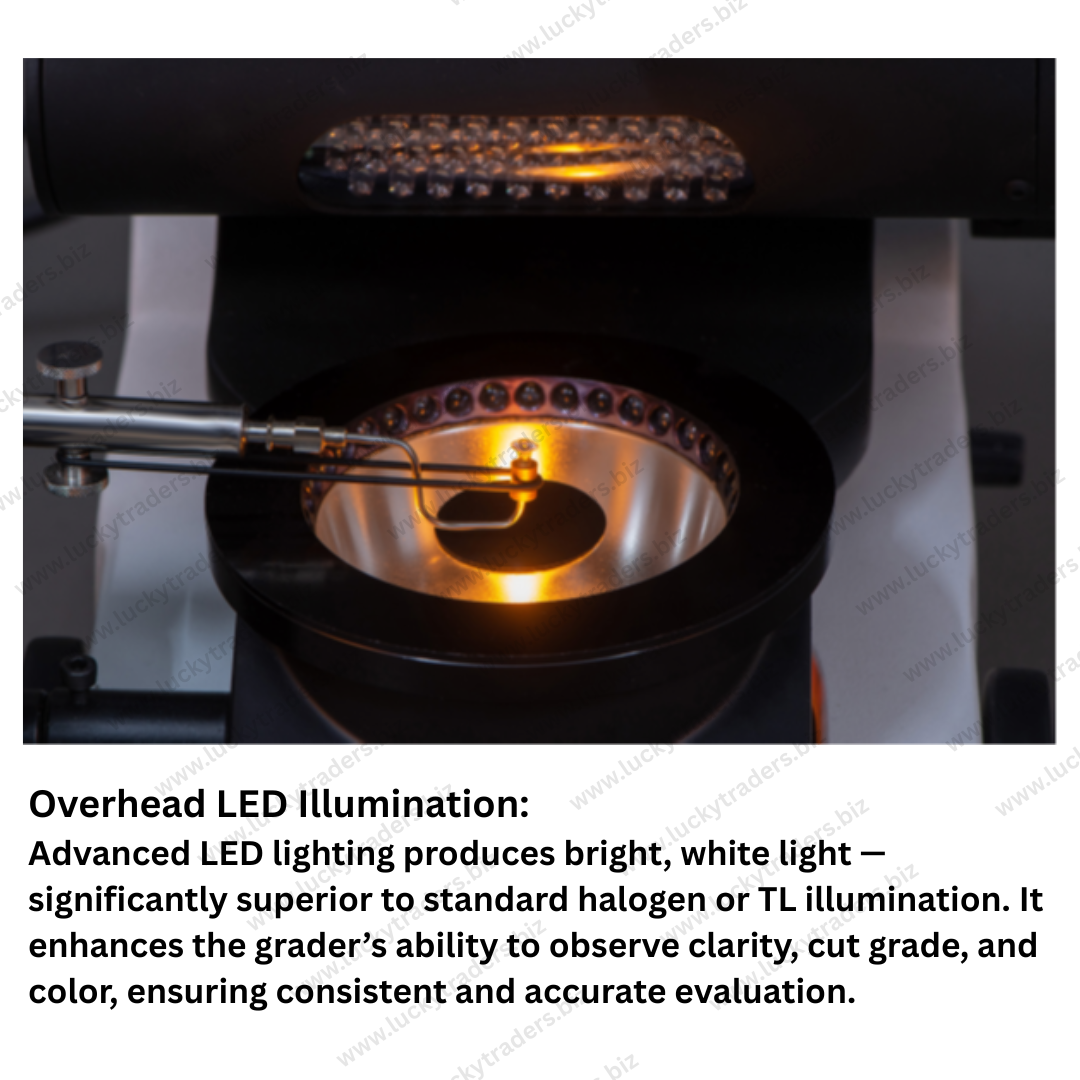

3. Overhead LED Illumination: Advanced LED lighting produces bright, white
   light—significantly superior to standard halogen or
   TL illumination. It enhances the grader’s ability to
   observe clarity, cut grade, and color, ensuring
   consistent and accurate evaluation.

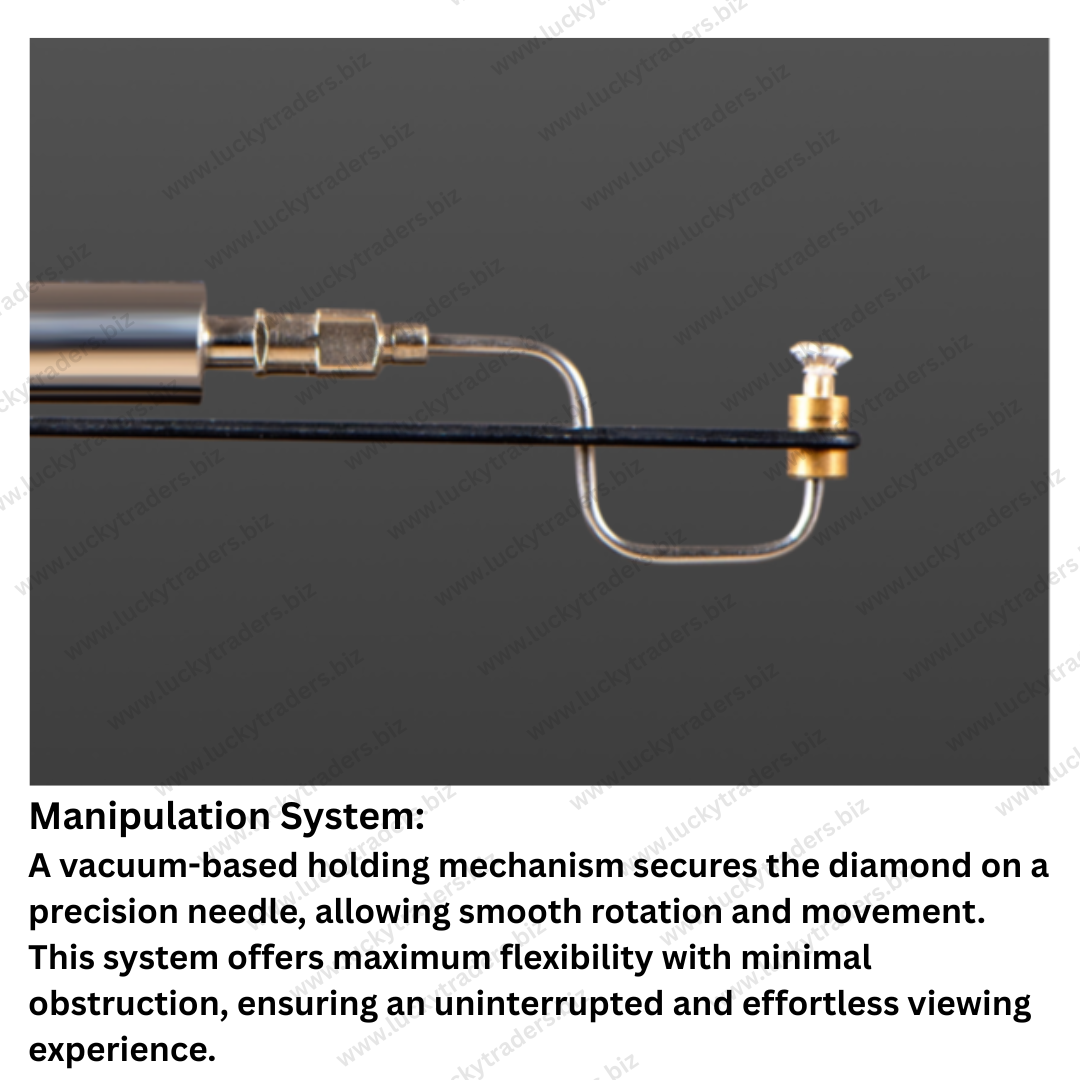

4. Manipulation System: A vacuum-based holding mechanism secures the
   diamond on a precision needle, allowing smooth
   rotation and movement. This system offers
   maximum flexibility with minimal obstruction,
   ensuring an uninterrupted and effortless viewing
   experience.
